1-1586495-8
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1586495-8
Datasheet:
Description:

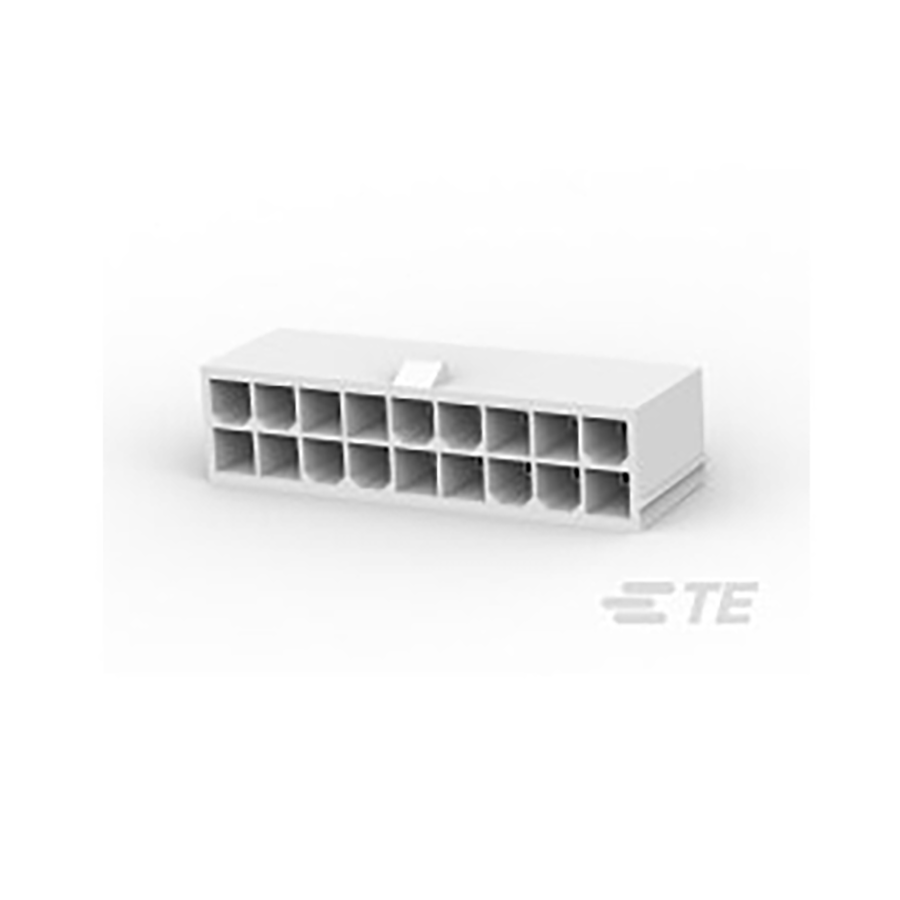

Headers and Wire Housings Through Hole Header Number of Positions:18 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 46.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 18 |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 4.2 mm |
| Number of Terminals | 18 |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | White |
| Gender | Male |
| Number of Contacts | 18 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Row Spacing | 106.68 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 9 A |
| Housing Color | White |
| Contact Gender | Male |
| Number of Power Positions | 18 |
| Termination Post Length | 3.5 mm |
Stock: 166
Distributors
pcbx
pcbxUnit Price$1.58931
Ext.Price$1.58931
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58931 | $1.58931 |
| 10 | $1.38926 | $13.89260 |
| 25 | $1.33283 | $33.32075 |
| 50 | $1.30206 | $65.10300 |
| 100 | $1.16198 | $116.19800 |
| 300 | $1.03697 | $311.09100 |
| 500 | $0.92541 | $462.70500 |
| 1000 | $0.82586 | $825.86000 |
